Name: Mobile Mark LTB Series LTBG301 - Antenna - blade - cellular, navigation - surface mountable LTBG301-3C3C2C-GRY-60
SKU: 275220

Product Details ＋

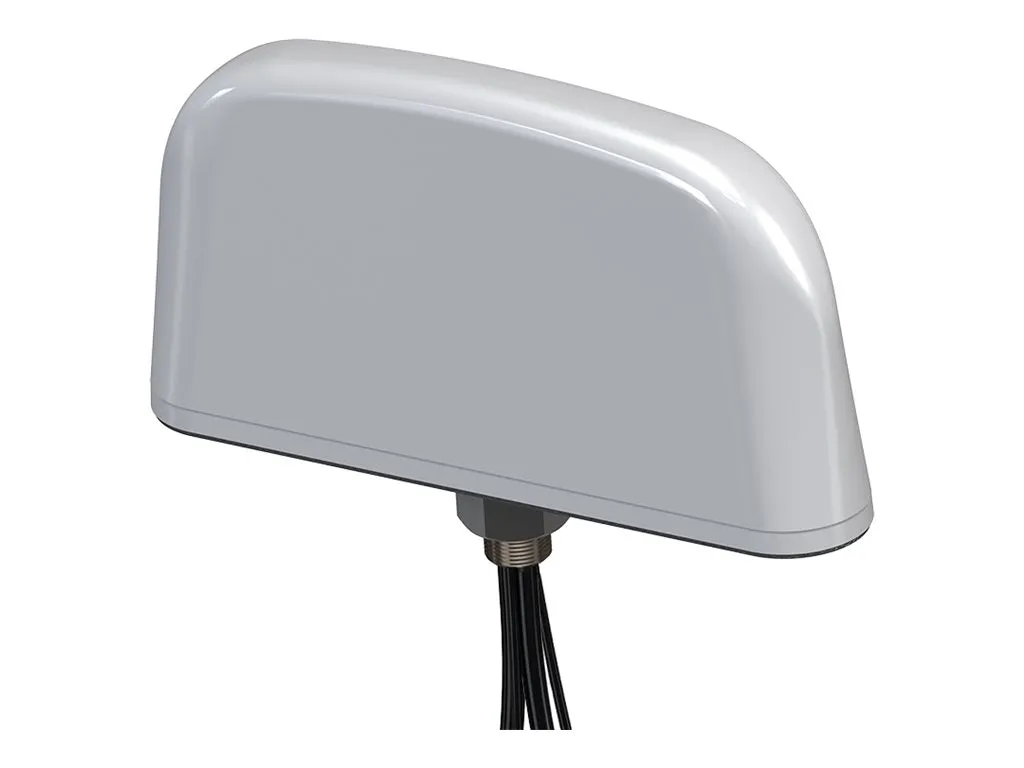

Mobile Mark LTB Series LTBG301 - Antenna - blade - cellular, navigation - surface mountable

Durable and weather-resistant design
The LTBG301 antenna features an IP67 rating, making it suitable for use in harsh weather conditions while protecting against dust and water ingress.
High-performance signal capabilities
With a frequency range of 694 - 960 MHz and 1.71 - 2.7 GHz, this antenna supports a variety of applications, ensuring strong and clear signal reception.
Versatile mounting options
The surface mountable design offers flexibility during installation, allowing for various placement options depending on user needs.
Efficient power handling
Designed to handle a maximum power of 10 watts, the antenna maintains effective performance across different applications.
Robust construction material
Constructed from UV-resistant plastic, the LTBG301 is built to endure prolonged exposure to sunlight without compromising its structural integrity.

The Mobile Mark LTB Series LTBG301 antenna is designed for both GPS and cellular applications, providing performance within the frequency ranges of 694 - 960 MHz and 1.71 - 2.7 GHz. Its blade form factor is optimized for surface mounting, allowing for easy installation in various environments. With a robust IP67 rating, this antenna is built to withstand harsh weather conditions, ensuring reliable operation in diverse settings. The 2x2 MiMo design enhances signal clarity and strength, while operating with a VSWR of less than 2:1 further ensures efficient signal transmission. With a power capacity of up to 10 watts and a 50 ohm impedance, the LTBG301 is suited for navigation and cellular applications alike. This model does not require a ground plane, offering flexibility in installation. Made from UV-resistant plastic, it withstands exposure to sunlight without degradation, making it an ideal choice for outdoor use.
